Track Sprint Handlebar

The Velobike Track Sprint Handlebar has been optimised to meet the strength requirements of the worlds top track sprinters.

Analysed using FEA (finite element analysis) software to simulate how the handlebars will behave under various physical conditions to refine the balance between the aero and bluff profiles in combination with the strength characteristics of the tubes.

The resulting design has been fatigue and static overload tested to over double the ISO requirements for racing bicycle handlebars.

Sculpted drop transition for various grip positions through the drop and grip zones.

An oversize grip diameter of 27mm was selected to reduce the grip force required and reduce strain on hand and wrist joints especially during standing starts. This reduces the risk of injury while locking your upper body for maximum power transfer through the bike.

Specifications:

• UCI legal

• Derby Wheel registered
• JKA certified for Japanese's Keirin Racing
• Designed and tested to 2x ISO strength requirements
• Ceramic gloss finish
• Japanese Toray High Modulus Carbon Fiber
• 300mm, 320mm and 350mm widths (center to center)
• 100mm reach (center to leading edge)
• 115mm drop (center to center)
• ø27mm oversize grips
• ø31.8mm stem clamping area
• 7° grip angle
• Weight (Approximately)  300mm - 375g, 320mm - 385g, 350mm - 395g

Includes

• Handlebar (x1)

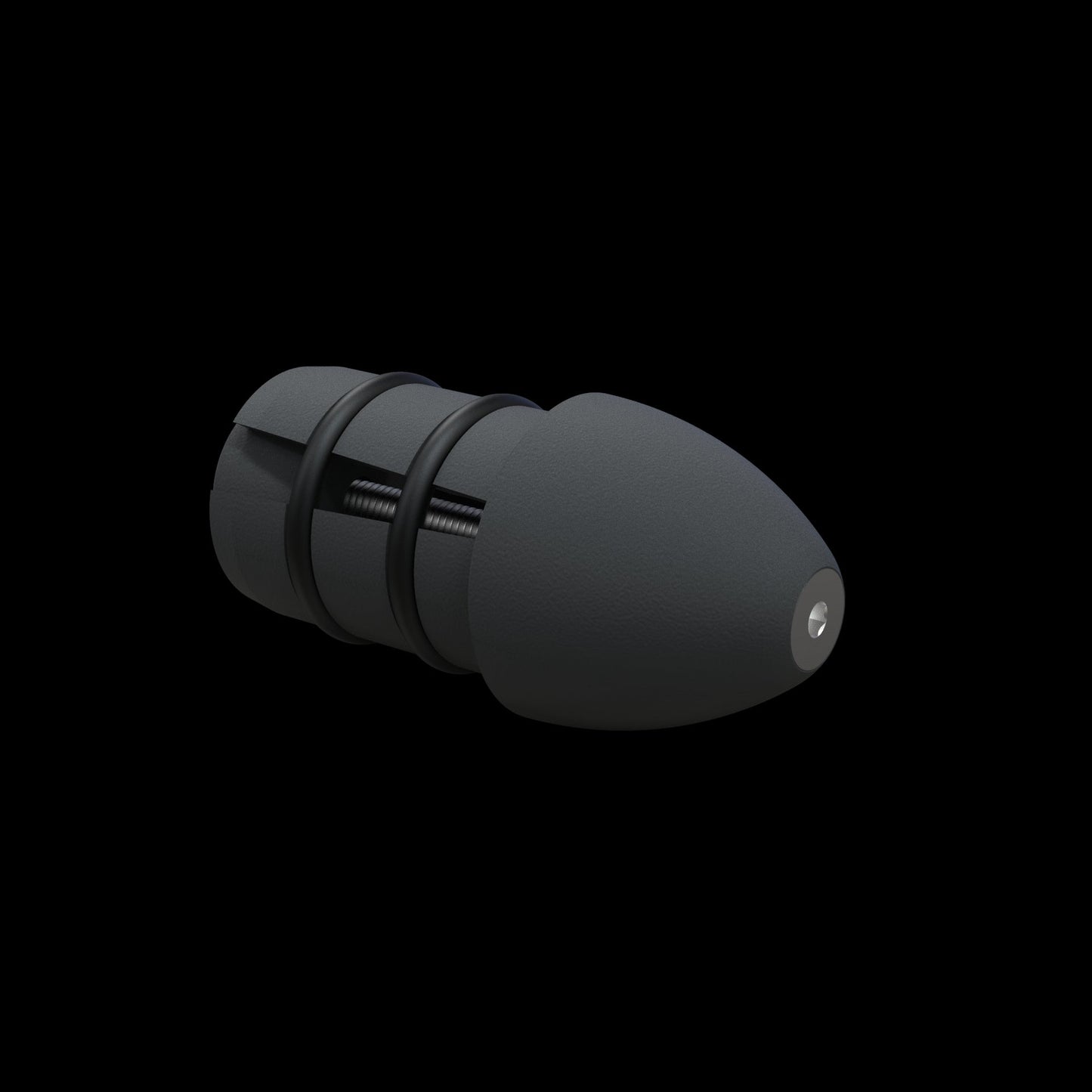

• Bar ends (x2)

*Bar wrap not included
